Hi, I am new to forum so i would like to say hello to everyone here. I have designed a circuit for interfacing 16x2 HD44780 based lcd using 3 wires with the help of a Serial in Parallel Out (SIPO) shift Register (CD4094). Its working and i have interfaced it with ATMEGA8 and I am actually kind of driving it with a software SPI type stuff( Bit- Banging).
But i have written the Program in AVR GCC and don't have much expertise to write a Arduino specific library for my code and LCD Adapter. So if anyone here is willing to lend me a hand in it i would be very grateful. Because this could be very useful for arduino as it is interfaced using only 3 wires and not specific to any particular type of I/o pin. We can use any I/O pin to send data. Gold miner vegas. So here is the code, schematic and some images of it.
74hc595 Serial Lcd Code For Mac
Introduction HD44780 based character LCDs require at least 6 I/O lines from microcontroller to display data. Therefore, they are not suitable for low-pin microcontrollers like PIC12F series microchips.

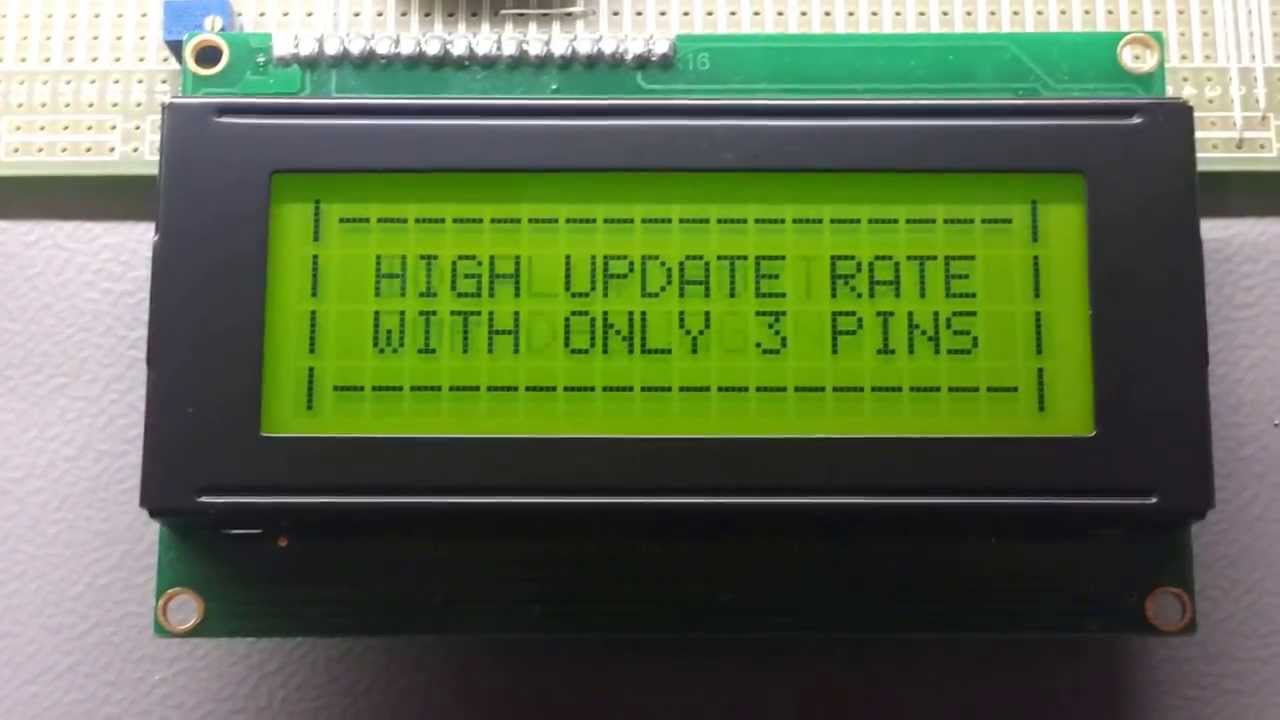

In this project, I am going to show how to drive an HD44780 based LCD display with only 3 pins of a microcontroller. I am going to demonstrate it with PIC12F683 microchip. The character data and command from the microcontroller is transferred serially to a shift register (74HC595), and the parallel output from the shift register is fed to LCD pins. About 74HC595 74HC595 is a high-speed 8-bit serial in, serial or parallel-out shift register with a storage register and 3-state outputs.
The shift register and storage registers have separate clocks, SHCP and STCP respectively. Data in the shift register is shifted on the positive-going transitions of SHCP, and the content of shift register will be transferred to the storage register on a positive-going transition of the STCP. If we tie both the clocks together, the shift register will always be one clock ahead of the storage register. The 8-bit data of the storage register will appear at the parallel output (Q0-Q7) when the output enable (OE) is low. In this project, SHCP and STCP are tied together. So, if we want to receive a serially transferred 8-bit into parallel form at Q0-Q7, an extra clock pulse is required after transmitting the 8-th bit of serial data because the clocks are tied and the storage register is 1-clock behind the shift register. HD44780-based character LCD All HD44780 based character LCD displays are connected using 14 wires: 8 data lines (D0-D7), 3 control lines (RS, E, R/W), and three power lines (Vdd, Vss, Vee).
Some LCDs may have LED backlight and so they may have additional connections (usually two: LED+ and LED-).
